10" Big Blue Whole House Water Filter System – Tannin Reduction Cartridge

A single-stage Big Blue whole house filtration system housing a tannin-selective reduction cartridge. Designed for properties on private water supplies – boreholes, springs and wells – where naturally occurring tannins from peat, decaying vegetation and leaf litter give water a yellow or tea-coloured tint and an earthy taste.

The cartridge is supplied with the system and uses the universal 10" x 4.5" ("Big Blue") format, so future replacements stay simple.

What tannins are – and why a standard filter won't shift them

Tannins are large organic molecules that leach into water from peat, leaves and decaying roots. They're not harmful to drink, but they leave their mark in three ways:

• Discolouration – water comes out the tap with a yellow, amber or "weak tea" tint.
• Staining – fixtures, sinks, laundry and toilet bowls pick up brown marks over time.
• Taste and odour – an earthy, musty or astringent character that sediment and carbon cartridges don't fully remove.

Standard sediment and carbon filters can't capture tannins because the molecules are too small for mechanical filtration and bind too loosely to activated carbon. They need a dedicated anion-exchange media designed specifically for this job – which is exactly what this cartridge contains.

How it works

The tannin cartridge is packed with a tannin-selective anion-exchange resin. As water flows through the cartridge, the resin attracts the negatively charged tannin molecules and exchanges them for chloride ions, leaving water visibly clearer and free of the earthy taste tannins cause.

Single-stage vs two-stage – which do you need?

This single housing is the simpler, more economical setup of the two whole-house tannin systems we offer. It's ideal in two situations:

• Clean supplies with a tannin issue: if your borehole or spring water is otherwise low in sediment and iron, the tannin cartridge can do its job without a pre-filter ahead of it.
• Adding to an existing setup: if you already have sediment or iron filtration in place, this single housing is a clean way to bolt a tannin stage onto your existing system.

If your supply has visible sediment or sand alongside the tannin discolouration, the two-stage version with a 5-micron sediment pre-filter is a better choice – it'll significantly extend the life of the tannin cartridge.

Important – will this work on your supply?

Tannin cartridges work brilliantly when matched to the right water, but they're more sensitive to feed water conditions than sediment or carbon filters. Before ordering, please consider:

• Hard water: calcium and magnesium foul tannin resin and shorten its working life dramatically. If your supply is hard, we'd recommend installing a water softener upstream of this system.
• Iron and manganese: high levels of either will also coat and disable the resin. These are best dealt with by a dedicated iron filter ahead of the tannin stage.
• Chlorine: tannin resins handle low to moderate chlorine, but heavily chlorinated supplies should be carbon-filtered first.
• Tannin level: cartridge life depends entirely on how much tannin is in your water. Lightly tea-tinged water will give you many months between changes; heavily stained water may need replacement every few weeks.

If you're not sure whether tannin is the right answer for your discolouration, we're always happy to talk it through – contact us with a sample or a description of what you're seeing and we'll point you in the right direction.

Compatibility

• Standard 1" female BSP inlet and outlet ports – a straight fit on UK whole-house plumbing.
• Accepts any standard 10" x 4.5" ("Big Blue") cartridge, so the housing can be repurposed for sediment, carbon or specialist filtration if your needs change.
• Suitable for cold mains feeds in domestic and light commercial settings.

Technical specifications

If your incoming mains pressure exceeds 6 bar (≈88 psi), fit a pressure regulator upstream. UK mains pressure is typically well within range, but it's worth checking before installation.

Installation notes

The system is designed for wall mounting at the point of entry, downstream of your stopcock. We'd recommend installing isolation valves on the inlet and outlet so cartridge changes are quick and tidy.

Replacement intervals depend entirely on local water quality. As a guide, the tannin cartridge will last anywhere from 1 to 12 months based on the tannin load in your supply. Many customers find it useful to keep a spare cartridge on hand once they've established a baseline.

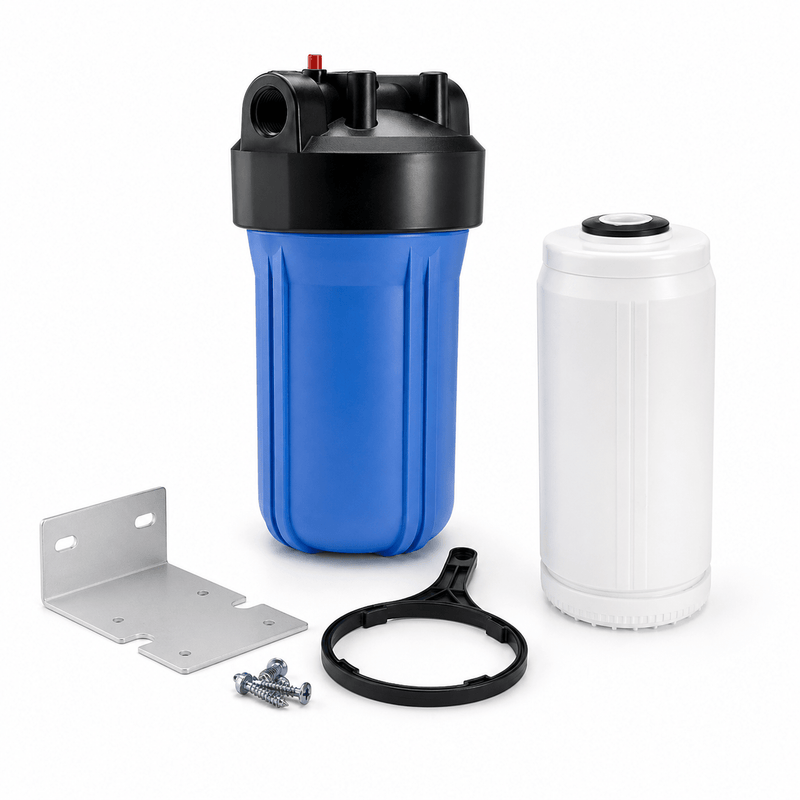

What's included

• 10" Big Blue single filter housing with mounting bracket
• Tannin reduction cartridge (10" x 4.5")
• Filter bowl wrench
• Wall mounting screws
• Spare housing O-ring
• PTFE (Teflon) tape
• Instruction guidance

Follow the manufacturer's installation guidance, confirm all connections are secure and flush the product as instructed before regular use.
